Stick Wood

Potential Energy http://www.potentialenergy.org/ stoves are the stoves original designed in the Berkley labs for Sudan (the Darfur region). They are an energy efficient stove designed with the cook's needs in mind.

They have recently added an orange 'cool mesh' to the outside of their metal stove to help protect the stove user (and their children) from burns. The second photo is of a stove field test, where ladies in Africa can see for themselves the advantages and disadvantages of several designs.

The Berkley stove is created out of metal and then shipped to local artisans who assemble the stove in the field. This video shows part of the process.

ublished on Dec 20, 2013

December 20, 2013

Dear Friends,
A few weeks after Typhoon Bopha (locally Pablo) struck eastern Mindanao in December 2012, I was introduced electronically to a Filipina doing graduate studies in Saskatoon, Saskatchewan, Canada.. This young Filipina was fundraising for her home province of Davao Oriental in Vancouver but I was only able to contact her after she returned to Saskatoon. When she learned about the Eco-Kalan, she lamented at the thought of "so much rice donated to the typhoon victims but nothing to cook it with". Her lament has echoed in my mind ever since and has made me more determined to bring the Eco-Kalan stoves to victims of disasters wherever possible, not by ourselves, but with other organizations that can provide security, reliable transportation, food, drinking water, clothing and building supplies.

The stove was developed by Adrian Padt and Aidan Oosthuysen, and Richard Pocock, and uses a familiar Rocket design surrounded by a wire cage to improve the stove's stability and reduce burns. It's a smart looking stove, it saves women time and energy in gathering firewood, and it has lower emissions than the solutions it is typically replacing.

Lighting instructions:

The Rocket Works Stove, web site http://www.rocketworks.org/

  • The Rockt Works stove is a high efficiency wood burning stove, designed to accommodate multiple fuels when required.
  • It is smokeless after initial combustion, thereby reducing the likelihood of carbon monoxide poisoning and reducing the emission of black carbon particles.
  • The outer cage remains cool to touch even after hours of cooking, due to our innovative design.
  • It is made from high quality, heat resistant stainless steel allowing for years of regular use.
  • It can boil 5 liters of water in 15 minutes using as little as 250g of wood, which is significantly less than traditional cooking methods.
  • Its thermal efficiency is 45%, for the Large Pot High Power, performed by the SeTAR Thermal Efficiency Test.
  • Its emissions are the best in its class.

Basic Specification:

  • Mass: 2.95Kgs
  • Height: 270mm
  • Diameter : 240mm

Lighting instructions in English:

MIT has recently published the paper "Up in Smoke" by Rema Hanna, Ester Duflo and Michael Greenston which studies the a randomized installation of the Chullah in India. The study participants received skilled help in installing the Chullah stove and minimal help in maintaining them.

The Study is published Here:
http://www.charcoalproject.org/2012/04/news-clean-cookstoves-draw-suppor...
this link is shorter http://bit.ly/IfI0ZL

Umang Maheshwari, Greenway Grameen Infra

The Greenway Smart Stove is an insulated metal stove, that appears to be a rocket style design with bakalite handles and a metal pot rest and fuel rest. You can see more details in the Greenway Smart Stove flyer.

This stove is marketed as an improvement over the mud Chulha, which is familiar in India.

Dear all,

For over two years we have been telling people that in two weeks or so we hope to have the mud Rocket Stove website updated. It finally happened. Flip has worked countless hours on this. This morning she shouted out, "The baby is born!"

Thanks to Larry Winiarski for all the mentoring and watching over us. Without Larry and the Good Lord this would have never happened. http://www.rechoroket.com/Home.html

Happy New Year,
Jon and Flip

The "Easy 5 Gallon Bucket Rocket Stove", is very easy to build. All materials anyone needs to cook a good hot meal is a metal 5 gallon bucket, some stove pipe and vermiculite, pearlite or similar insulation (even "wood ash" can be used). Since the insulation separates the heat from the housing, almost ALL of the flame and heat is directed up to the cooking pot or utensil. Almost NO heat is wasted, making it one of the most efficient rocket stoves I've seen. Definitely one one the EASIEST to build and transport!

Ron Ray

Robert V. Lange, February, 2011

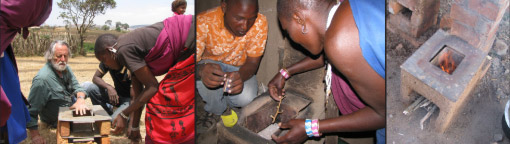

Robert Lange, and the team from the ICSEE has been working in cooperation with the local Maasai leadership to bring both improved cookstoves and improved light and radio access to their people, as well as the training to install and repair their own stoves and PVC systems.

This project does a great job of teaching the women of the Maasai tribes to build their own improved rocket style stoves using local materials, and relatively small sections of steel and rebar to improve the durability of the local ceramic brick. The women are clearly proud of their new stoves, and their ability to repair, and move the stoves as needed, and even better than that - the neighbors are jealous and motivated to learn and build as well.

More information is available on their web site: http://www.maasaistovessolar.org

More information about the project methodology, and other ICSEE Projects can be found on the ICSEE web site:
http://www.the-icsee.org/projects/africa/villageprojects.htm
and the Villages Project web site: http://www.villageprojectsint.org/

MAGH 3G GOOD STOVE

Most adopted stove by poor, tribals and farmers in parts of Andhra Pradesh, India, Already facilitated 1500 stoves and the demand is growing every day.
For more details see links:
http://www.bioenergylists.org/content/magh-3g-stove-all | http://e-magh3g.blogspot.com/


[MAGH OPEN STOVE](http://e-maghopenstove.blogspot.com/) is an institutional fixed woodgas stove. This stove is useful for cooking needs of up to 100. With primary and secondary air controls it is easy to operate and highly efficient. For making this stove, "Magh CM" stoves are used inside. This stove is installed at "Open House", Hyderabad, a place for destitute youth for cooking their own food, shelter, studies, etc. Implemented under the "Good Stoves and Biochar Communities" Project, Implemented by GEO with support of GoodPlanet.org France. Stove design by Dr. N. Sai Bhaskar Reddy. For more details visit http://e-maghopenstove.blogspot.com/
