Dear all,

For over two years we have been telling people that in two weeks or so we hope to have the mud Rocket Stove website updated. It finally happened. Flip has worked countless hours on this. This morning she shouted out, "The baby is born!"

Thanks to Larry Winiarski for all the mentoring and watching over us. Without Larry and the Good Lord this would have never happened. http://www.rechoroket.com/Home.html

Happy New Year,
Jon and Flip

TChar Technology for Cookstoves: Part B: Construction has been released. It is available for download at:
http://drtlud.com/
The TChar is a TLUD which lifts off at the end of the gasifier phase to drop char into either a charcoal stove bottom for continued use as cooking charcoal or a quench base for later use as charcoal or biochar.Chaussures Homme J.M. Weston

The TChar(tm) stove is a TLUD stove that lifts off at the end of the gasification stage to drop the charcoal into a T-base(tm): a charcoal stove to continue cooking with the charcoal created or a quench base to save the charcoal for biochar or other use.
Download Part A of TChar Technology for Cookstoves at:
http://drtlud.com/『アディダス』に分類された記事一覧

Flip and Jon Anderson,updated May, 2010

and the movie:

Flip and Jon Anderson put together a beautiful earthen oven that's powered by a Rocket stove. They've got all of the details on their picassa photo album:
https://picasaweb.google.com/Jonnygms/RocketOven#slideshow/5598633235210438450


They were inspired by Kiko Denzer's book Build your Own Earth Oven to build the supports with apple pruning into an inverted basket, and then mix the clay and straw to put over it. This was done on a wonderful earthenware support built on top of simple framing to elevate the oven to allow for the rocket stove underneath.

Larry Winiarski offered suggestions and tweaks to improved the efficiency of the stove, and Flip and Jon report that it makes a beautiful pan of rolls and marionberry pie, with very little wood, and can also boil water off the top of the chimney. Nicely done.

Tom Miles, ETHOS Conference 2011
Kirkland, Washington, USA January 28th ~ 30th, 2011

The ETHOS Stoves Conference was last weekend, and it included demonstrations by some of the stove makers and manufactures, with the opportunity to talk to the people using and inventing the stoves.

Here are some of the stand-outs from the demonstrations area, click on an image to view it in a larger size.

The Shark Stove presented by John and Flip Anderson. Notice the even cooking on the pancakes, that even heat is partially due the ceramic shark teeth construction just under the cooking surface. This is primarily a stick burning stove with both a plancha (even cooking surface) and pot rests.

Jatropha Seed TLUD (Top, lit, updraft design, using natural draft - no fan) by
Pamoja (http://www.pamoja.net/protree_jatropha.html) and Jet City Stoveworks ( http://jetcitystoveworks.com/ ). Abely demonstrated by David Otto.

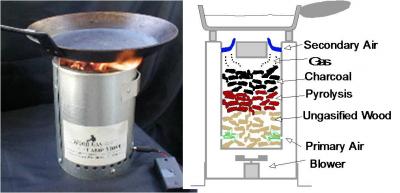

Paul Anderson dexterously burning Jatropha seeds (out of doors) in the Woodgas Stove ( http://woodgas.com/bookSTOVE.htm ) designed by Tom Reed. This is a light weight gasifying stove (minus the pot rest in the picture) that uses a small electric fan.
Boiling water in the Charbelle, presented by Peter Scott. The Charbelle is a Charcoal cooking stove designed by the Burn Design Lab ( http://www.burndesignlab.org/our-stoves/ ) for use in Haiti.

This stove features an abrasion and thermal shock resistant ceramic liner surrounded by sheet metal cladding. The stove is currently being mass produced and sold in Kenya. The stove has been very well received, earning top marks from consumers.



Ryan with StoveTec was demonstrating the StoveTec Stove ( http://www.stovetec.net/us/ ) an Ashden Award winning cook stove that can either be used with stick wood or charcoal.

The institutional version of the StoveTec Stove for use in schools and other organizations, has an attached chimney and an a pressure cooker version. The pressure cooker is useful to shorten cooking times, and the fuel consumption, when cooking beans and small grains.

The Nomad PrePac ( http://www.preppac.net/ ) Bio-fuel Camp Stove burning stick wood. This is an ultra-light stove designed to burn small amounts of fuel for camping or for emergency preparedness.

the PEMS emissions testing was happening at ETHOS (of course), Larry Winiarski is in the background in these pictures.

Dean Still, August 2010

One fine rainy morning two fine fellows from StrawJet (http://www.strawjet.com) , an Oregon company that makes equipment to bundle agricultural waste in Malawi, wandered into the lab and asked if it’s
possible to make a stove that uses bundled corn stalks to cook food. I said that I thought it was possible and after some conversation and testing of prototypes StrawJet put up a $250 prize to encourage Stove Camp participants to make it so.

Burning corn stalks leaves quite a bit of ash that does not fall apart but keeps its shape.
For this reason stoves must be adapted to deal with a lot of solid ash. Two types of stoves
were tested: 1.) A Jon Anderson Rocket Stove with lots of draft and a grate and 2.) Two
large TLUDs built by Paul Anderson and Art Donnelley that were vertically loaded.


Participants voted for the best stove that, in their opinion, was most effective. Jon
Anderson won the 2010 Cat Piss Award for a tall Rocket stove made entirely from found
materials that successfully burned the bundled corn stalks. The hope is that a pilot test
could be conducted in Malawi. If so, we’ll pass along the results.

Jon and his wife Flip have been in Haiti recently for three months helping folks to build
these kinds of Rocket stoves. They are beautiful, dedicated people, who like many folk at
Stove Camp, deserve real praise and adoration. I’m happy to send them some of both and
congratulations for making a wonderful stove!

Paul Anderson, February 21, 2010

For the first time at one Internet location, the basics of "Top-Lit UpDraft" (TLUD) micro-gasification are available along with numerous links to source documents. This "TLUD Handbook" is a "draft for
discussion" and this is the 2010 copy of the Handbook.

Paul

Paul S Anderson, Ph.D. -- aka Dr. TLUD ("Dr. Tee-lud")
Biomass Energy Consultant with BEF, & Partner in Chip Energy.
Specialist in micro-gasification.
Office & Res: 309-452-7072
www.chipenergy.com
http://stoves.bioenergylists.org/andersontludconstruction

File attachments:

From Willie to Richard: A Family of Tincanium Stoves
Paul Anderson,Hugh McLaughlin

A Power Point Presentation presented at the 2010 ETHOS Conference. It is a bit "tongue in cheek."

Enjoy!

Paul
--Paul S Anderson, Ph.D. -- aka Dr. TLUD ("Dr. Tee-lud")
Biomass Energy Consultant with BEF, & Partner in Chip Energy.
Specialist in micro-gasification.
Office & Res: 309-452-7072
