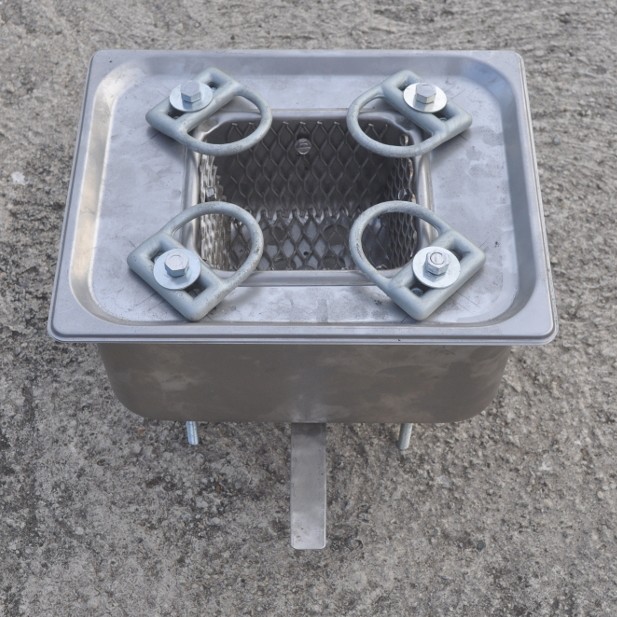

steam pan charcoal stove

steam pan charcoal stove

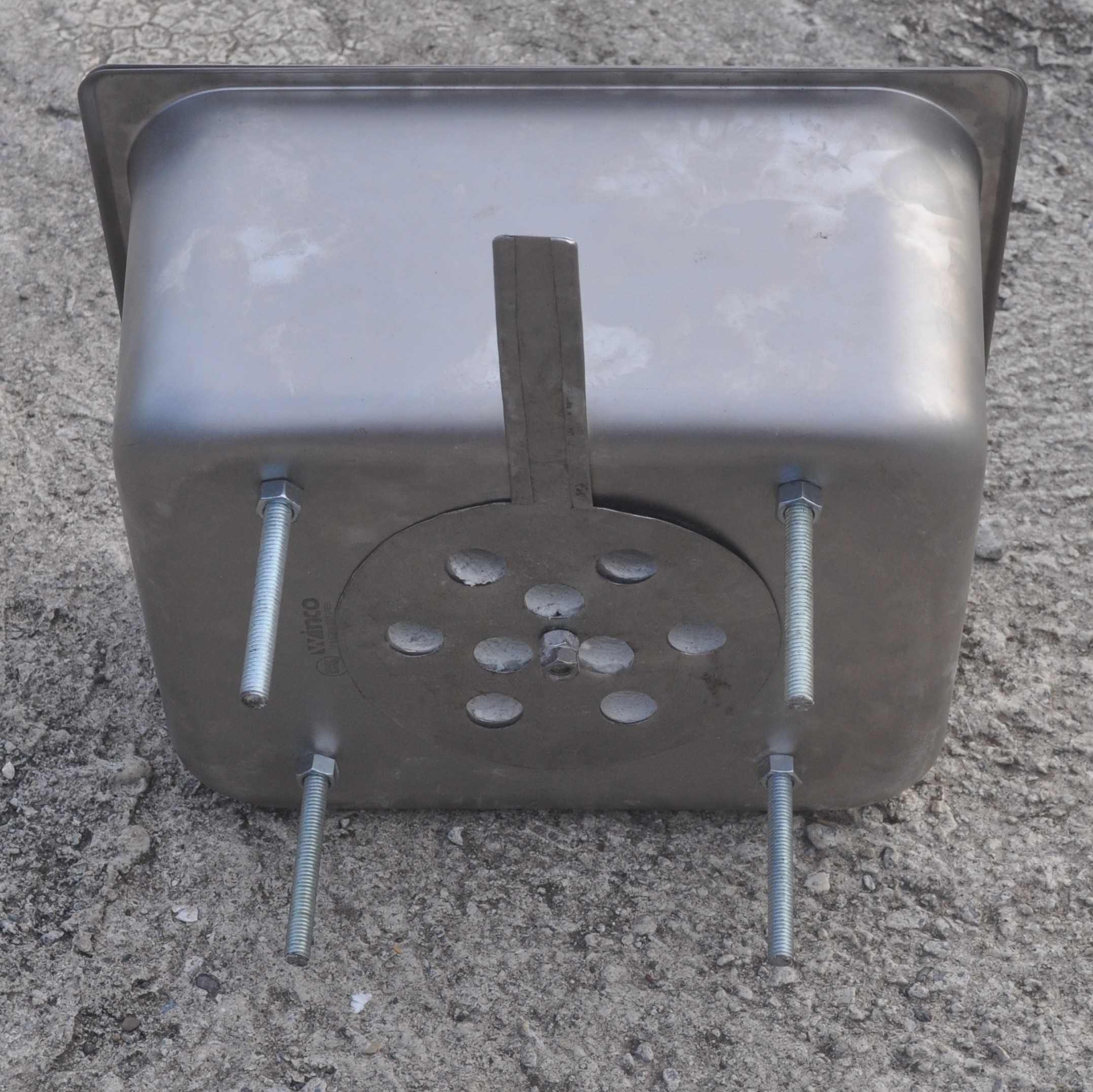

steam pan charcoal stove side bottom view
steam pan charcoal stove bottom with perforated lollipop air control

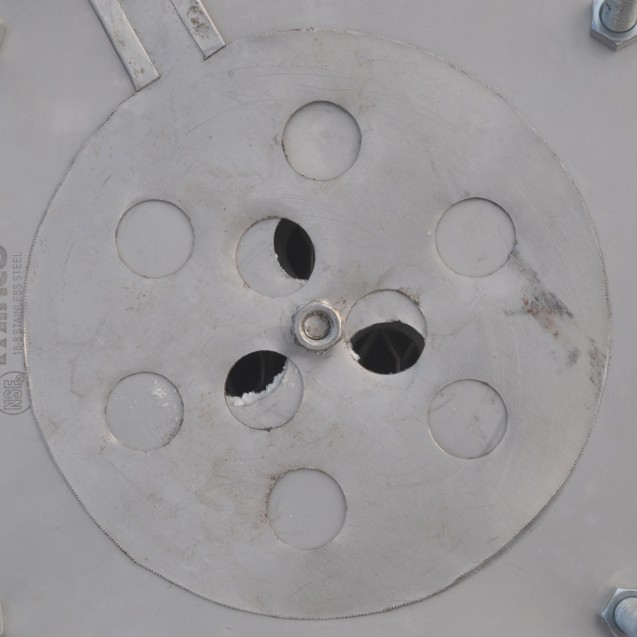

perforated lollipop air control closed

In my continuing quest to use readily available manufactured materials for stove construction, here is the steam pan charcoal stove with "perforated lollipop" air control. It is a 1/6 size steam pan (roughly 6" x 7" x 4" deep) inside a 1/2 size (roughly 10" x 12" x 6" deep) with 1" ceramic fiber board insulation between. The charcoal chamber is lined with expanded stainless steel to extend the life of the inner pan and improve air flow. Army surplus D rings are used for pot supports. Threaded rod for legs. It can be easily disassembled for repair. It has a small charcoal capacity like the BURN's Jikokoa (formerly Tank).
I plan to eventually build a two burner version in a full size steam pan.Nike
