StoveTec

ETHOS Lighting of the stoves
CREEC, Aprovecho Sam and others at ETHOS 2015
StoveTec TLUD with a toasting marshmallow
StoveTec Stove - new Colors
Christa Roth sitting near the StoveTec stoves
Peter Scott and others ETHOS 2015
Kirk Harris TLUD
Rocket Works Stove ETHOS 2015

ETHOS Cooking Stoves Conference in Kirkland, Washington January, 2015.
for more about the next ETHOS Conference see http://www.ethoscon.com/

The ETHOS conference brings together people involved in stove design, dissemination, and testing from Universities, Government, and Non Government organizations, and has themes around the topics of improving cook stove design and performance, reducing emissions, and improving stove adoption, but listening to the needs of the people using the stoves. It ends with the 'lighting of the stoves' which is a demonstration of some of the cooking stoves that people have talked about in the conference.

In addition to capturing photos of the stoves, this year I captured a few pictures of the crowd of attendees comparing stove designs, toasting marshmallows, etc.

The big green stove is the InStove institutional rocket stove http://instove.org/

The lovely people taking pictures were from CREEC ( Energy and Energy Conservation ) which presented a great analysis of current cooking stove tests and some insights to improve them. They also noted that fans typically fail in Uganda, and there are no fans available to replace them.
For more about CREEC see http://creec.or.ug

StoveTec and Aprovecho presented some interesting innovations in stove design that they hope to field test in the coming year. The light green stove has an insulated top door for adding fuel to their TLUD style stove. The purple stove is their rocket stove that has been optimized for improved particulate emissions, with an improved set of colors.
For more about StoveTec stoves see http://stovetecstore.net/
for more about Aprovecho and stove testing see http://www.aprovecho.org/lab/index.php

I was happy to get a good picture of Christa Roth of GiZ her handbook of MicroGasification is outstanding, to download a copy go to https://energypedia.info/wiki/File:Micro_Gasification_2.0_Cooking_with_g...

File attachments:
Flip Anderson, Haiti Rocket Stove
Aprovecho StoveTec
Mayon Turbo Rice Husk Stove
BioLite Camp Stove
BioLite Camp Stove in Christa Roth's Demonstration House

(Thanks to Ben Sloan!) the presentations are posted on the ETHOS website: http://www.vrac.iastate.edu/ethos/proceedings2013.html

Save the Date!: ETHOS 2014, it will be at Northwest University in Kirkland, Washington on January 24 - 26, 2014.

nike

Tom Miles, ETHOS Conference 2011
Kirkland, Washington, USA January 28th ~ 30th, 2011

The ETHOS Stoves Conference was last weekend, and it included demonstrations by some of the stove makers and manufactures, with the opportunity to talk to the people using and inventing the stoves.

Here are some of the stand-outs from the demonstrations area, click on an image to view it in a larger size.

The Shark Stove presented by John and Flip Anderson. Notice the even cooking on the pancakes, that even heat is partially due the ceramic shark teeth construction just under the cooking surface. This is primarily a stick burning stove with both a plancha (even cooking surface) and pot rests.

Jatropha Seed TLUD (Top, lit, updraft design, using natural draft - no fan) by
Pamoja (http://www.pamoja.net/protree_jatropha.html) and Jet City Stoveworks ( http://jetcitystoveworks.com/ ). Abely demonstrated by David Otto.

Paul Anderson dexterously burning Jatropha seeds (out of doors) in the Woodgas Stove ( http://woodgas.com/bookSTOVE.htm ) designed by Tom Reed. This is a light weight gasifying stove (minus the pot rest in the picture) that uses a small electric fan.
Boiling water in the Charbelle, presented by Peter Scott. The Charbelle is a Charcoal cooking stove designed by the Burn Design Lab ( http://www.burndesignlab.org/our-stoves/ ) for use in Haiti.

This stove features an abrasion and thermal shock resistant ceramic liner surrounded by sheet metal cladding. The stove is currently being mass produced and sold in Kenya. The stove has been very well received, earning top marks from consumers.



Ryan with StoveTec was demonstrating the StoveTec Stove ( http://www.stovetec.net/us/ ) an Ashden Award winning cook stove that can either be used with stick wood or charcoal.

The institutional version of the StoveTec Stove for use in schools and other organizations, has an attached chimney and an a pressure cooker version. The pressure cooker is useful to shorten cooking times, and the fuel consumption, when cooking beans and small grains.

The Nomad PrePac ( http://www.preppac.net/ ) Bio-fuel Camp Stove burning stick wood. This is an ultra-light stove designed to burn small amounts of fuel for camping or for emergency preparedness.

the PEMS emissions testing was happening at ETHOS (of course), Larry Winiarski is in the background in these pictures.

Stovetec(tm) Greenfire Technology (tm)
www.stovetec.net

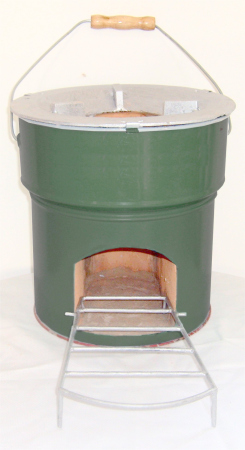

Plain One door
Plain One door

StoveTec™ introduces
GreenFire Technology™
Wood and Charcoal Stoves
