Stephen Joseph

The system uses

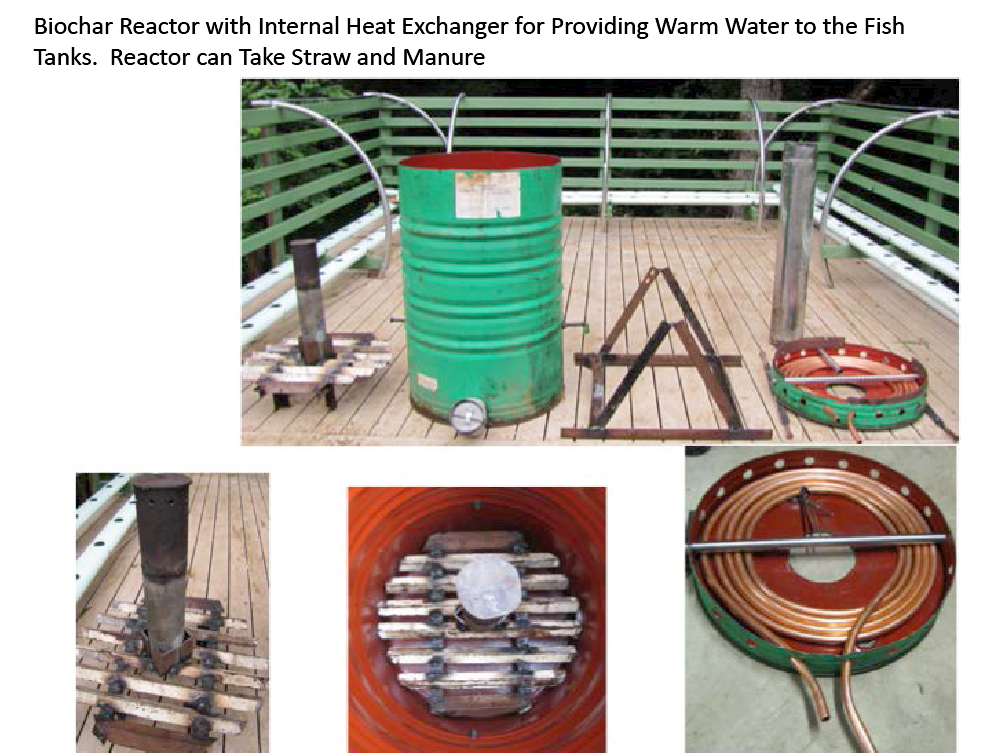

1. Biochar reactor to convert all residues and purpose grown crops (especially bamboo and acacia) to biochar for use as a growing media, filter and for feeding to fish with wood vinegar (1% biochar with ,25% wood vinegar).
2. Heat from biochar reactor maintains optimum temperature for fish and pl,ants
3. Biochar used as a medium for improve nutrient uptake in either pots tanks or troughs. Note with biochar water flows through troughs for only 1-3 hours per day reducing electricity requirements.
4. Aeration pond to grow water plants, fingerlings and filter water

Read the presentation for more detail:
http://stoves.bioenergylists.org/files/schematic_biochar_aquaponics_with...
