The Beehive Charcoal Briquette Stove
in the Khumbu Region,
Report by: Ing. Sjoerd Nienhuys
Senior Renewable Energy Advisor, SNV-Nepal
Report date:
Updated Version
Note:
This document has been prepared for the Namche Bazaar Conference to be held from 22-26 May 2003, in
conjunction with the celebration of the 50th anniversary of the
first ascent of
Copies of this paper can be obtained by writing to:
Director, SNV-Nepal
Tel: 00977-1-5523444 and 5523445
Fax: 00977-1-5528516 and 5523155
E-mail: snienhuys@hotmail.com
SNV Advisory Services
SNV-Nepal provides integrated advisory
services and access to finance for local and national development organisations
in
Depending on the character of the advisory
services, international technical or management expertise can be contracted
through the SNV-Nepal. The advisory
services of the SNV-Nepal will be made in the context of the national development
needs in
The areas of advisory services currently being conducted by SNV-Nepal are:
NRM: National Resource Management with two divisions:
1) the Biodiversity Sector Programme (BISEP) is an integrated rural development programme that supports government and local organisations in developing sustainable and income generating projects in forestry and nature conservation regions.
2) the Renewable Energy (RE) Programme supports the sub-sector development of the Biogas industry through the Biogas Sector Partnership (BSP). BSP assists the biogas sub-sector in subsidy channelling, development of industry standards, research, programme management and quality control. The RE Programme also supports the sub-sector development of ghatta’s (traditional watermills) towards Improved Water Mills (IWM). The RE Programme can assist in matters related to solar energy applications, thermal insulation and heating equipment.
PSD: Private Sector Development Programme links micro and small enterprises to natural resources and provides institutional development, technical and management advisory services.
LGSP: Local Governance Strengthening Programme supports in coordination with other national and international organisations the ongoing decentralisation and women’s rights.
SPAN: Small Projects Assistance Nepal provides coordination for advisory services by experienced business managers from divers technical backgrounds on short-term contracts to local industries.
More information about the SNV-Nepal can be found in the SNV-Nepal annual report, in a series of programme fact sheets and on the SNV website: www.snvworld.org
CONTENTS
The document is the result of a mission to Lukla/Mosi (8,000 ft. / 2634 m) and Khumjung (11,800 ft. / 3882 m) in the Khumbu region and contains observations about the use of the Beehive charcoal briquette stove for cooking and space heating. The Beehive charcoal briquette stove has the potential to become a practical source of renewable energy (RE) for domestic use, hotel owners and trekkers in high altitude camping grounds. Currently large amounts of kerosene is being brought into the region to satisfy the need for cooking energy and for use in Everest Base Camp.
The observations in this report are related
to the potential use of biomass charcoal briquettes and improved briquette
stoves at high altitudes in
The need to improve the locally manufactured biomass charcoal briquettes has been also identified by WWF Nepal Programme. The same problems in the supply of energy exist in similar high mountain regions, such as the conservation areas managed by the WWF-Nepal Programme and the King Mahendra Trust for Nature Conservation. The charcoal briquettes are manufactured from agricultural residue and forest waste products. High firewood consumption for domestic cooking and heating purposes is depleting forest reserves because at the higher altitudes, where tree growth is considerably slower than at the lower altitudes such as in the Terai, regeneration of firewood cannot meet the demands. The author looked at some of the technical, social and financial implications of the produced briquettes and stove.
In
·
Mr. Kamal
Rijal, Renewable Energy Specialist, ICIMOD and ICIMOD
Research and Demonstration Centre in
E-mail: icimod@icimod.org.np Website: www.icimod.org
· Mr. Lumin Shrestra, Director Centre for Rural Technology-Nepal (CRT/N).
E-mail: crt@wlink.com.np Website: www.crtnepal.org
· Dr. Krishna Raj Shrestha, Chairman Centre for Energy and Environment (CEE), who has conducted training programmes on briquette making and stove manufacturing.
· Mr. Sanu Kaji Shrestha, Chairman, Foundation for Sustainable Technologies (FoST).
Galkopakha,
Thamel,
E-mail: fost@ntc.net.np
· Mr. Dharma Poudel, Mechanical Engineer. E-mail: dharmapoudel@yahoo.com
· Mr. Rinsje Sherpa, WWF Nepal Programme Coordinator in Pandung, Khumbu region.
More information about woodstoves, briquette stoves, briquette making and testing of stoves, or about stoves in general can be obtained from the following websites:
http://www.repp.org/articles/static/1/1010424940_7.html (Active information on stoves, charcoal, biomass)
http://www.repp.org/discussiongroups/resources/stoves/ (Stoves website, charcoal, activated carbon)
http://listserv.repp.org/archives/stoves.html A stove discussion forum is available through the same website.

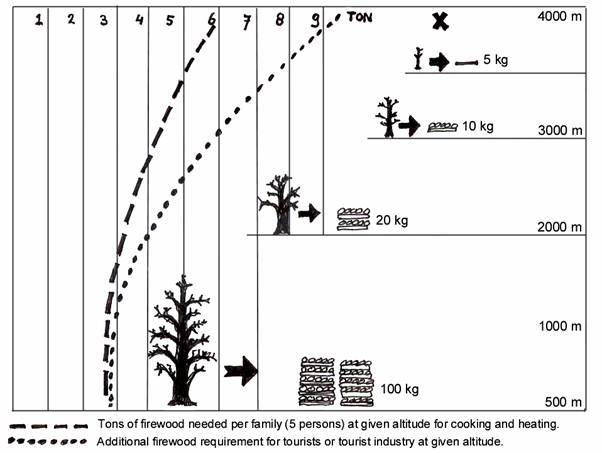

The region of the Sagarmanta Buffer Zone and Conservation Area has suffered severe deforestation in the last 20 years due to the increasing demand for:
As a measurement to reduce firewood collection for use in the tourist industry, travel organisations are now obliged to import kerosene into the region for heating fuel and to carry this kerosene to the mountain base-camps[1]. Cutting of firewood has been recently prohibited (year 2002). The local population is allowed to use, to a very limited extent, deadwood (branches) for local firewood needs, collect forest waste products and use cow dung 2].
In Pandung, the Lukla women group has undertaken the production of the Beehive charcoal briquettes as a cottage industry in areas where the invasive shrubs are in abundance. The product has limited application, however, and has had marginal economical success or impact. A five-day hands-on training was provided three years ago with the assistance of the Centre for Energy and Environment (CEE), which had developed a Nepali training programme on the subject. Briquette making involves manpower in the informal sector, thus providing an income generating activity.
The Beehive charcoal briquettes are made from charcoal produced from agricultural residues, such as rice husk, wheat chaff and forest “waste” vegetation (fallen pine needles, pinecones, grassy weeds, Banmarachar[3] shrubs, Lantana camara, etc.). This is an efficient method of utilizing bio-waste.
All woody biomass material can form the raw material for charcoal briquettes. Emphasis should be placed on using agricultural residues and invasive biomass. Increased demand for fuel wood has resulted in an increased area of deforestation. Invasive plants have taken over these deforested lands due to their rapid growth.
In some cases dried cow-dung cakes have been added, but this is
strongly discouraged as it is far more beneficial to use the cow dung for
fertilizer purposes. Cow dung is
preferably processed in a biogas reactor, which provides clean gas, whereas the
slurry still contains the fertilizer that can be used for agriculture.

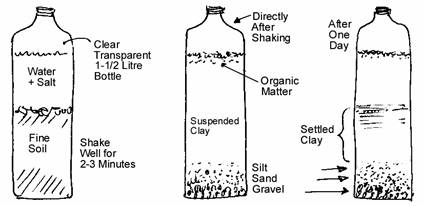

The biomass material is first sun dried until it has a humidity below 15%. It is then heated in a 220-litre metal charring drum. The resulting charcoal is ground to dust and (in Pandung) mixed with 30% dry clay-soil (in volume). Water is then added to make a paste. Using a 5 kg hand weight, the paste is compacted into a round mould. The 19 round pins create 12 mm holes throughout the height of the charcoal briquette after de-moulding. These holes not only allow the briquette to dry evenly, but they also result in an even burning process by allowing flames and gases to escape evenly from the briquette.
Photo: Banmara weed
The briquettes are sun dried for at least three days before being marketed. Marketing is targeted mainly to hotel owners and individuals in the Lukla and Pandung region. The briquettes are generally used for additional fuel in the large hotel stoves and for space heating in small metal stoves.
In addition to the making of the charcoal briquettes, a sheet metal stove is marketed, which has a thermal insulation from burned clay or cement against the inner side of the exterior metal sheet. The one-inch thick burned clay insulation material assures that the briquette maintains its heat and causes full combustion of the gasses. The small stove holds one briquette and can be easily be moved about. The stove is lit from below by first inserting paper and small pieces of firewood in the bottom opening and then igniting this incineration material. Once the briquette starts burning, the stove can then be brought inside the house. (See photo on cover of a stove with a burning Beehive briquette.)

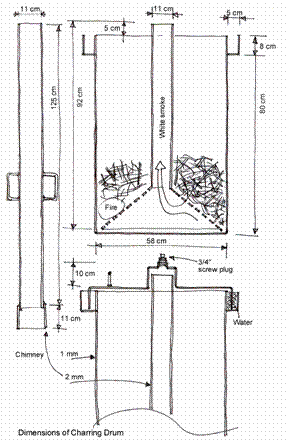

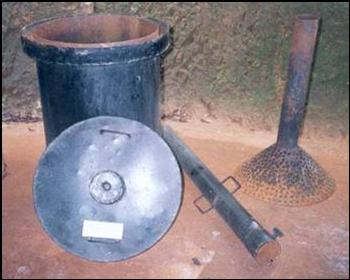

The charring drum is a 220-litre drum of
1-2 mm thick sheet metal with a 5 cm gutter for an 8 cm high water seal along
the upper rim. Inside the drum a
perforated cone with a chimney is placed (the cone has about 200 holes of ½
inch). The metal of the cone and chimney
is 2 mm. The covering lid provides a
water seal. The drum and drum components
are tarred against rust. The drum alone
weighs about 40 kg. The current design
can be transported by one person and has a life span of more than three years
with continuous use. The complete
charring drum set costs about NRs. 12-15,000 in
The filling of the 220-litre drum with dried biomass material and subsequent firing requires about two hours, whereas the cooling down of the drum (one batch) also requires about two hours. A total one-day production would therefore consist of two full cycles and would produce a combined total of 300-350 litres of loose charcoal[5].
A fixed-dome stone construction is used in
 |
The charring drum is placed on three bricks and the perforated cone with chimney attachment placed inside. An entire load of chopped (1 ft. length) woody biomass and forest waste material is stacked next to the drum.
1.
The drum is filled around the funnel base with a loose layer of
easily burnable material and ignited.
The biomass material should not burn completely to become ash.
2. After the first portion of biomass material starts to burn, another layer of biomass material is added, covering the burning layer.
3. The chimney extension is then placed on top of the inner chimney.
4. More biomass is placed onto the fire, avoiding that the fire extinguishes. The white smoke will now escape through the chimney.
5. The entire drum is gradually filled with the biomass, leaving sufficient space for smoke to escape.
6. When the smoke starts turning from white (containing water) to light grey and blue, the additional chimney pipe is removed and the lid placed on the drum. The gutter is filled with water.
7. The fire will slowly extinguish inside the drum and the biomass will be charred in about two hours. Let the drum cool down for a few hours.
The charcoal which is produced in the drum needs to be crushed into small particles for filling into the mould. This can be done by using grinding stones or by a special grinder. The grinding stones follow the same principle as for the grinding of flour and produce a very fine dust. To reduce this awkward and very dusty work, CEE has developed a grinder that reduces the dust generation and produces particles which are less fine[6]. As an alternative a dusk mask should be worn. The CEE grinder costs about NRs. 10,000.

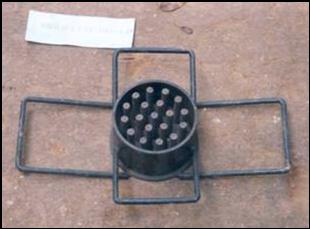

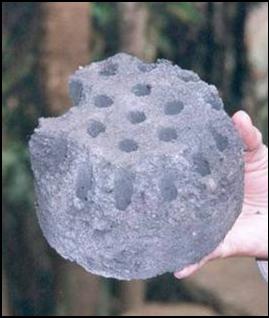

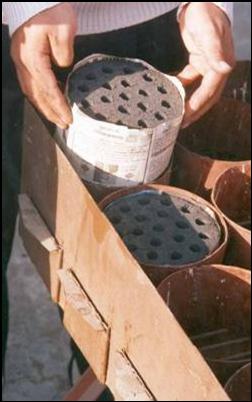

The hand mould consists of three parts and is manufactured by local blacksmiths from thick steel plate (5 mm) and smooth iron concrete reinforcement bars (12 mm). The mould is 90 mm high and has an internal diameter of 5" (127 mm). The 19 holes in the bottom are 12.5 mm (½ inch) to allow easy lifting of the pins and briquette out of the mould. Handles are 10 mm. The mould costs NRs. 5,000.
Hand moulding requires a 5 kg metal weight to tap the mixture into the mould. This, however, does not produce a high briquette density. Estimated moulding pressure may vary between 2-3 kg/cm2. One person can make about 30 briquettes per hour with hand moulding, provided the charcoal-clay mix or paste is ready.
It was noted that the non-precise positioning of the 19 pins (in a star pattern) on the mould base would allow the base plate to be fitted in only one position. During the manufacturing of new moulds it is recommended to use a precise welding jig for the 19 pins and a drilling jig for the holes. This way the perforated plate can be placed in any position over the 19 pins.

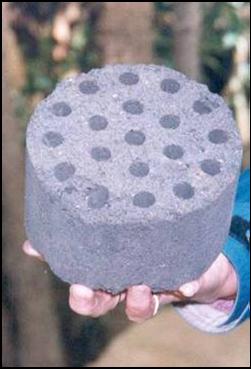

The weight of the hand-made, dried briquette is about ½ kg. Overall manufacturing cost is estimated to be around NRs. 2.50-3 per piece, whereas the briquette can be marketed at about NRs. 4 per piece. The local cost of pure charcoal (used by blacksmiths) and copper workers is about NRs. 8 per kg.
 |
 |
CEE, with the financial assistance of the
AEPC[7],
had started to develop a pedal-operated briquette press. The press would provide an improved compacting
power of about 1000 kgf, which translates into about
10 kg/cm2 on the briquette.
The briquette would be compacter and stronger than the hand-moulded
briquette, thus providing longer burning time and better transportability,
factors which can be of importance in the marketing and acceptability by its
users. The cost of the pedal-operated
press in
Pure woody biomass charcoal would produce about 28 Mega Joule/kg. A well compacted, dried briquette has a weight of about ½ kg. At high altitudes the briquettes can be adequately dry, but at lower altitudes their humidity can exceed 15%, thus reducing the energy value.
Ø Hardwood woody biomass charcoal briquettes with 20% clay content would produce about 18 MJ/kg or about 9 MJ/briquette. In practice this would heat 2 litres of water in 15-20 minutes using the insulated (one briquette) metal stove (from about 20ºC - 98ºC at 1300 m altitude). The total burning duration of this briquette is about 1.5 hours.
Ø Forest and agricultural waste charcoal briquettes, also with 20% clay, would produce about 12 MJ/kg or 6 MJ per briquette, depending on the composition of the charcoal. In practice this would heat 2 litres of water in 30-45 minutes, using the single briquette stove. The total burning period of one briquette would be about 1 hour. Because the Banmara-charcoal type is less pure, more volatile particles will be emitted during burning, which makes them less convenient for use in fully closed living rooms.
Ø
In
Ø Lignite[8] briquettes were tested a few years ago by RONAST in Kathmandu, with some funding from JICA (Japan International Cooperation Agency), but results were not very satisfactory due to low caloric value and rather high particle and undesirable smoke emissions. Coal was used in combination with the Banmara vegetation. On some occasions these coal-Banmara briquettes were promoted as alternative energy source, but the emissions of large quantities of smoke particles and NOx and SOx gasses makes the product only useful for use outside the house or workshop. Because of the coal-gas emissions, this coal product cannot be considered as being environmentally advantageous.

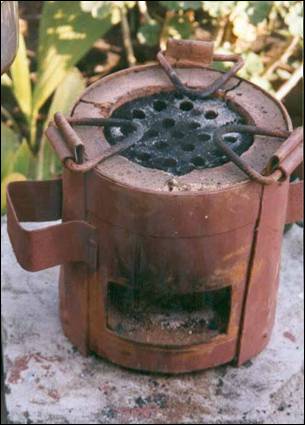

The metal stove fits one briquette of ½ kg inside. The stove in Pandung was made from scrap metal and old oil drums, 0.6 mm thick. The lined stoves of CEE had thinner sheet metal.
Two models were presented by CEE, one with a one-inch thick inner lining of clay, the other with cement. The inner clay lining would be dried and partly cooked by the briquette fire. The cemented lining would become burned and with time disintegrate. Both are easy to replace. The inner lining will conserve heat towards the centre of the stove and increase the heat efficiency when used for cooking. In addition, the briquette will burn more completely with the lining than without. In the case of the Pandung stove, the inner lining had been removed, possibly because at the higher altitudes the small portable stove was used only for space heating (see photo below).
Because charcoal is frequently used for barbeques and by restaurants requiring large heat capacity for cooking or grills, CEE developed a metal barbeque stand in which eight charcoal briquettes could be placed. Ventilation holes were provided in the bottom through which the briquettes could be fired. This barbeque model would cost about NRs. 4,000.

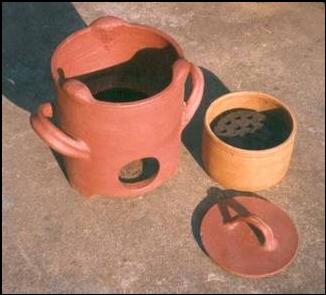

CEE has manufactured a prototype portable baked clay stove that can be used for either space heating or cooking. The unit may be rather fragile for its use.
 |
 |
Briquette Stove from which the insulation has been removed (left) and Baked Clay Stove (Right)
|
Weed harvesting tools |
Axes, hoes |
? |
|
|
Charring drum, 200 litre |
3 mm sheet metal, 4 pieces |
12,000 |
154 USD |
|
Grinder |
Metal, rotating |
10,000 |
128 USD |
|
Dust masks |
Cotton/cloth filters |
? |
|
|
Mould, 19 pins, three piece |
5" diameter and 4" high |
5,000 |
64 USD |
|

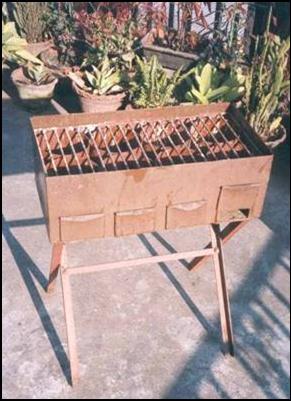

Barbeque |
8 briquettes |
4,000 |
51 USD |
|
Thongs for briquettes |
To fit into holes |
? |
|
|
Thick metal stove |
One briquette, lined |
400 |
5.13 USD |
|
Thin metal stove |
One briquette, lined |
300 |
3.84 USD |
|
Clay stove, three piece |
One briquette, double wall |
? |
|
|

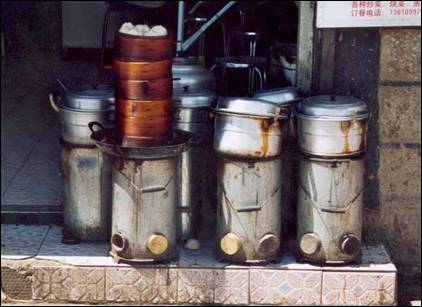

Tibetan stove |
3 Briquettes, double wall |
? |
|
|
Briquettes, hand compacted |
½ kg with Banmara |
3 |
0.04 USD |
|
Compacting machine |
1000 kgf, pedal operated |
25,000 |
320 USD |
|
Briquettes, press compacted |
0,6 kg with Banmara |
4 |
0.05 USD |
|

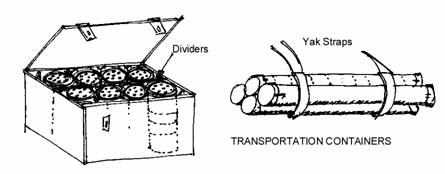

Transport container |
To be designed |
? |
 |
 |
Barbeque with Air-intake Regulators
WWF Nepal Programme has been supportive towards the local Beehive briquette manufacturing as a source of renewable energy and has detected the following shortcomings:
1. The briquettes are not very much in demand, probably because they have a large solid (30% clay-soil) content and subsequently produce large amounts of ashes.
2. The briquettes are not very strong and disintegrate rapidly, thus making them impractical for transportation over large distances (see photo page 15).
3. The making of the briquettes was a dusty affair and disliked by the women because of the high emission of black charcoal dust. WWF supplied dust masks to the women.
4. The metal stoves used had the inner lining from clay removed (see left-hand photo page 6).
From a brief analysis of the Beehive stove and the accompanying biomass briquettes, the following observations can be made:
1. The resulting briquette is a standard round size [about 5" (12.5 cm) diameter and 3" (7.5 cm) high]. In other regions of the world similar sized round briquettes are manufactured.
2. The stove is locally manufactured by metal workers and is commonly made from recycled sheet steel using old oil drums (0.6 mm / 22 gauge or thinner) as basic source material.
3. The stove allows only one briquette to be burned at the time, thus requiring for every new briquette also new burning material for starting the fire in the lower part.
4. The height inside the stove was too low for the briquette and the pot supports were actually lying on top of the new briquette, causing damage to the fuel brick. As a result the burning fire/gas from the briquette would have difficulties emerging from the holes. The height of the stove is less relevant if the stove is only used for space heating.

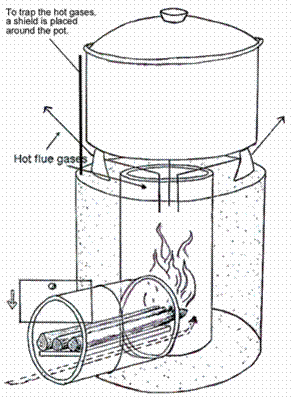

5. When used for cooking, the stove did not have a fire shield around the pot, thus having a low efficiency.
6. The ash plate in the middle of the height of the stove had 19 hole punched into it (diameter about ½ inch). This would require the fairly exact positioning of the new briquette holes over the holes in the ash plate. This is not a serious problem.
7. The side space around the briquette inside the stove was rather wide, more than one inch, as compared with the actual minimum space needed, about ¼ inch only. This was caused because the one-inch insulating lining had been removed. The removal of the lining would not increase the heat transmission. Instead, the combustion would be less complete without the insulation and instead of more heat it would burn with less heat and produce more un-burned gasses.
8. The ventilation or air access hole under the ash plate was rather large (more than 10 cm x 10 cm) and there was no means to regulate the air intake. The hole was kept large to allow a small fire to be made under the ash plate for starting the briquette burning.
9. The overall ventilation space around the briquette would allow the briquette to burn rather fast and uncontrolled for a limited period.
10. The briquette already crumbled at the corners with handling. This was caused by a too high soil content and insufficient compacting/binding during production.
11. Villagers complained about large quantities of ashes. This is caused by a too high soil content and removal of the thermal insulation (lining) of the stove which causes a complete burning. The space heating capacity due to the removed insulation would actually be decreasedl.
Simple or clear information about the briquette were apparently unavailable or not easily accessible from the WWF Nepal Programme office in Pandung. There was no knowledge on where to get information on the improvement of the production process.
From
The Tibetan briquette stove is very popular because of the following reasons:
A. There is on this high altitude plateau (4000 m / 12,000 ft.) absolutely no firewood available nor charcoal from woody biomass.
B. All cooking fuel needs to be brought into the region and transport costs are rather high.
C. The Tibetan briquette stove is thermally insulated (double wall) so wind cooling is minimal.
D. The model allows for three briquettes to be placed on top of each other, so a hotter fire and a fire of longer duration can be generated.
E. The model comes with special thongs that allow the higher briquettes to be placed exactly in the right position on top of the lower briquette, lining up the vertical channels.
F. The model can be well regulated through two times 2-2½ inch round pipes and corresponding closing lids/caps, thus precisely allowing to temperate the air and oxygen intake and reduce burning (in the picture some caps are removed for increased burning).
G. At the bottom of the stove the ash plate is an open grating and allows sufficient air to get to the briquettes from below, without the need of precise positioning of the bottom briquette over holes in the ash plate.
H. Pots and kettles placed on the stove have a wide base, as wide as the insulated stove, so the use of the fire heat is optimised.
I. Briquettes are of strong composition, marketed in large packs (two or three dozen) and have minimal damage during transport.
J. The stove does not come with a wind shield.
K. Briquettes include ground coal (Anthracite) that has a higher heat value (caloric value) than charcoal and agricultural residues.
L. Because of the coal content, the briquette stoves are used outside the house or restaurant to allow the poisonous gases safely to escape.
M. The wire handle allows easy transportation.

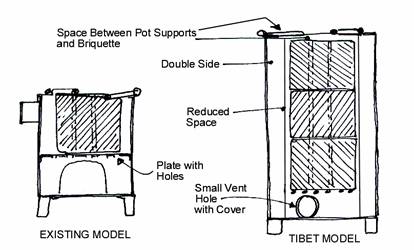

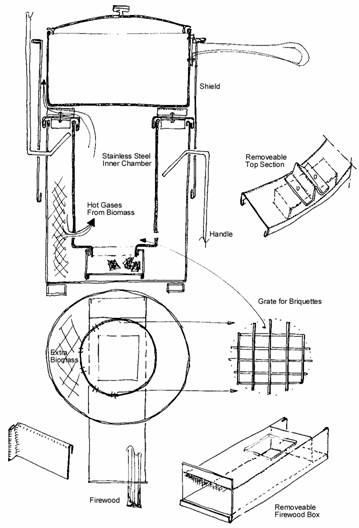

The following sketch provides the main points of improvements that can be realised in the stove design. On the right-hand side the improved model.

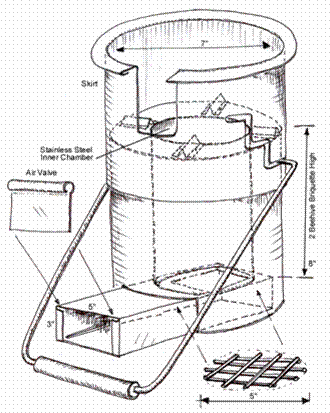

In making a new model in for Lukla, this model needs to be field tested with the potential users, such as the trekking companies and porters. It is also suggested to make a 2-briquette model with a wind shield. The success of a new product depends on the level of acceptance by the customers (see ANNEXE 1 for points to consider).
The table in the ANNEXE 1 provides a resume of the most significant points indicating why a product which provides energy from biomass is marketable or not.
The main points relating to some of the biomass charcoal briquettes found in Lukla are:
Positive:
-
